DOWNLIGHT BL CC

Downlight BL with CCTK Selector

Where to Buy

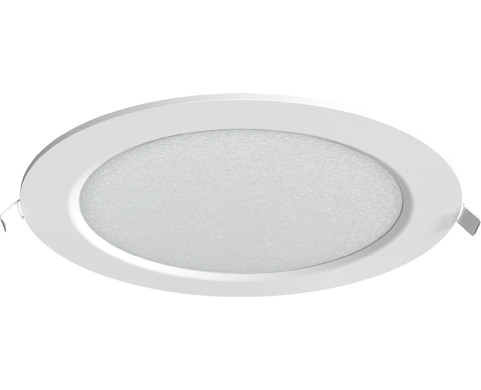

  • xcite downlight bl cc web
  • xcite downlight bl cc switch

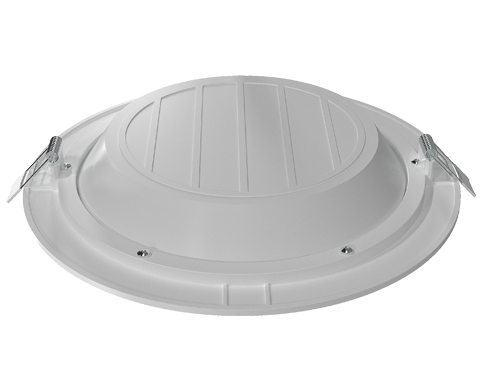

  • xcite downlight bl cc top
  • xcite downlight bl cc web
  • xcite downlight bl cc switch
  • xcite downlight bl cc top
Where to Buy
  • Suitable for general domestic and commercial use

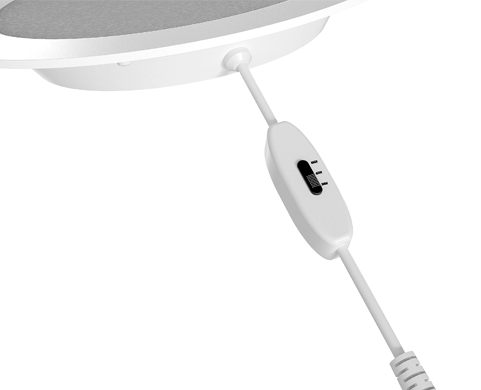

  • CCT adjustable via selector switch [3000K/4000K/6000K]
  • Available in 6 sizes
  • Available in 6 different outputs
  • Phase cut dimming option available
  • Frosted polycarbonate diffuser
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Up to 114 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours3 Years WarrantyDimmable
DOWNLIGHT BL CC Product Flyer Icon

Product Flyer
DOWNLIGHT BL CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner
XCBLC5CTD 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC5CT 5W - Downlight BL CC - [3000K/4000K/6000K] View View
XCBLC8CT 8W - Downlight BL CC - [3000K/4000K/6000K] View View
XCBLC8CTD 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC12CTD 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC12CT 12W - Downlight BL CC - [3000K/4000K/6000K] View View
XCBLC15CTD 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC15CT 15W - Downlight BL CC - [3000K/4000K/6000K] View View
XCBLC18CTD 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC18CT 18W - Downlight BL CC - [3000K/4000K/6000K] View View
XCBLC22CTD 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable View
XCBLC22CT 22W - Downlight BL CC - [3000K/4000K/6000K] View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner
XCBLC5CTD 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 5 350 70 View
XCBLC5CT 5W - Downlight BL CC - [3000K/4000K/6000K] 5 350 70 View View
XCBLC8CT 8W - Downlight BL CC - [3000K/4000K/6000K] 8 700 88 View View
XCBLC8CTD 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 8 700 88 View
XCBLC12CTD 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 12 1200 100 View
XCBLC12CT 12W - Downlight BL CC - [3000K/4000K/6000K] 12 1200 100 View View
XCBLC15CTD 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 15 1500 100 View
XCBLC15CT 15W - Downlight BL CC - [3000K/4000K/6000K] 15 1500 100 View View
XCBLC18CTD 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 18 2000 111 View
XCBLC18CT 18W - Downlight BL CC - [3000K/4000K/6000K] 18 2000 111 View View
XCBLC22CTD 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 22 2500 114 View
XCBLC22CT 22W - Downlight BL CC - [3000K/4000K/6000K] 22 2500 114 View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner
XCBLC5CTD 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 70 90 View
XCBLC5CT 5W - Downlight BL CC - [3000K/4000K/6000K] 26 70 90 View View
XCBLC8CT 8W - Downlight BL CC - [3000K/4000K/6000K] 26 100 120 View View
XCBLC8CTD 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 100 120 View
XCBLC12CTD 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 150 170 View
XCBLC12CT 12W - Downlight BL CC - [3000K/4000K/6000K] 26 150 170 View View
XCBLC15CTD 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 180 200 View
XCBLC15CT 15W - Downlight BL CC - [3000K/4000K/6000K] 26 180 200 View View
XCBLC18CTD 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 220 240 View
XCBLC18CT 18W - Downlight BL CC - [3000K/4000K/6000K] 26 220 240 View View
XCBLC22CTD 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable 26 280 300 View
XCBLC22CT 22W - Downlight BL CC - [3000K/4000K/6000K] 26 280 300 View View

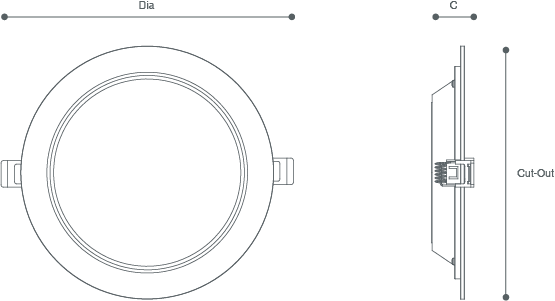

DOWNLIGHT BL CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBLC5CTD 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class D View Visit
XCBLC5CT 5W - Downlight BL CC - [3000K/4000K/6000K] Energy Class D View Visit
XCBLC8CT 8W - Downlight BL CC - [3000K/4000K/6000K] Energy Class D View Visit
XCBLC8CTD 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class D View Visit
XCBLC12CTD 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class C View Visit
XCBLC12CT 12W - Downlight BL CC - [3000K/4000K/6000K] Energy Class C View Visit
XCBLC15CTD 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class C View Visit
XCBLC15CT 15W - Downlight BL CC - [3000K/4000K/6000K] Energy Class C View Visit
XCBLC18CTD 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class C View Visit
XCBLC18CT 18W - Downlight BL CC - [3000K/4000K/6000K] Energy Class C View Visit
XCBLC22CTD 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable Energy Class C View Visit
XCBLC22CT 22W - Downlight BL CC - [3000K/4000K/6000K] Energy Class C View Visit

DOWNLIGHT BL CC Line Drawing
