WEATHERPROOF

IP65 Polycarbonate Luminaire

Where to Buy

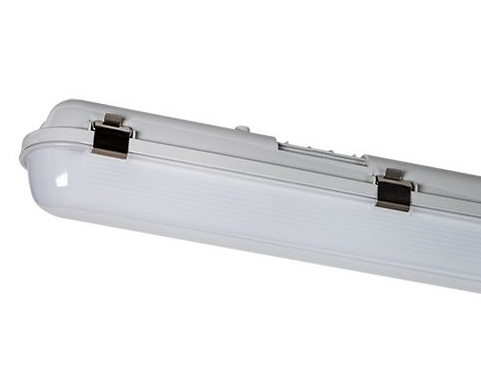

  • xcite weatherproof ie

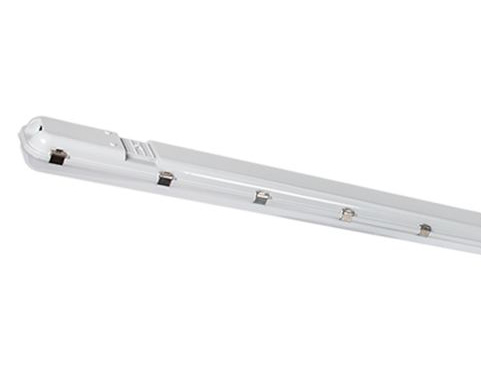

  • xcite weatherproof ie top

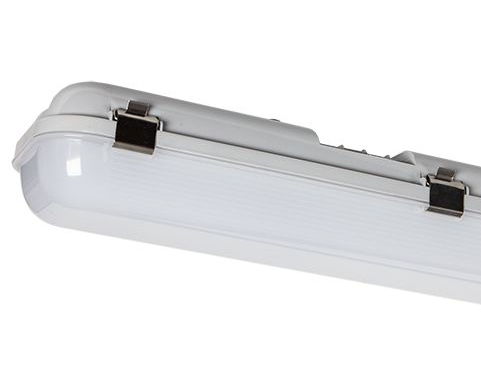

  • xcite weatherproof ie close up
  • xcite weatherproof ie
  • xcite weatherproof ie top
  • xcite weatherproof ie close up
Where to Buy
  • Ideal for replacement of linear fluorescent fixtures
  • Available in 2 sizes
  • Polycarbonate body
  • Supplied with opal diffuser
  • Integral emergency option available
  • Stainless steel fixing clips
  • Supplied as standard with neutral white [4000K] LED
  • Up to 120 lumens per watt efficacy

Note: This luminaire is not suitable for all chemical environments, please contact us for advice if this luminaire may be exposed to, oil, grease, solvents, acids, alkaline or any similar chemicals.

4000K - NW30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)
WEATHERPROOF Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet
WP15NW 30W - 1500mm Weatherproof - IP65 - 4000K View
WP15NWM3 30W - 1500mm Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K View
WP25NW 62W - 1500mm Twin Body Weatherproof - IP65 - 4000K View
WP25NWM3 62W - 1500mm Twin Body Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet
WP15NW 30W - 1500mm Weatherproof - IP65 - 4000K 30 3600 120 View
WP15NWM3 30W - 1500mm Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K 30 3600 120 View
WP25NW 62W - 1500mm Twin Body Weatherproof - IP65 - 4000K 62 7300 118 View
WP25NWM3 62W - 1500mm Twin Body Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K 62 7300 118 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet
WP15NW 30W - 1500mm Weatherproof - IP65 - 4000K 1575 67 73 View
WP15NWM3 30W - 1500mm Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K 1565 100 106 View
WP25NW 62W - 1500mm Twin Body Weatherproof - IP65 - 4000K 1575 105 73 View
WP25NWM3 62W - 1500mm Twin Body Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K 1565 155 106 View
WEATHERPROOF Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
WP15NW 30W - 1500mm Weatherproof - IP65 - 4000K
WP15NWM3 30W - 1500mm Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K
WP25NW 62W - 1500mm Twin Body Weatherproof - IP65 - 4000K
WP25NWM3 62W - 1500mm Twin Body Weatherproof - IP65 - 3hrs Maintained Emergency - 4000K

WEATHERPROOF Line Drawing
