DOWNLIGHT WP

Outdoor Downlight

Where to Buy
Where to Buy
  • Suitable for exterior canopy areas and soffits

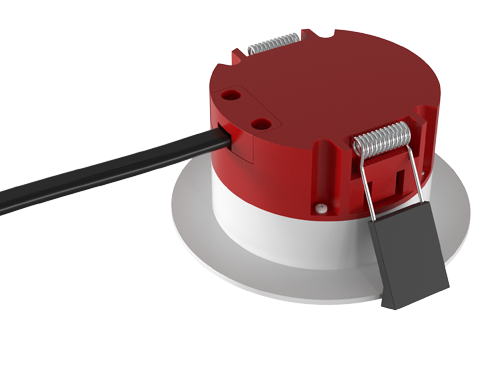

  • IP65 rated from above and below, with sealed pre-wired lead [1.5M]
  • Die-cast aluminium body with integral driver
  • Robust construction with corrosion resistant marine grade paint
  • Available in white, black or anthracite grey trim finish
  • Available in warm white [3000K] or neutral white [4000K]
  • Phase cut dimming as standard
  • Up to 100 lumens per watt efficacy
3000K - WW4000K - NW30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65Dimmable
DOWNLIGHT WP Product Flyer Icon

Product Flyer
DOWNLIGHT WP Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet
XCDLWP5WWB 5W - Downlight WP - 3000K - Black View
XCDLWP5WWG 5W - Downlight WP - 3000K - Grey View
XCDLWP5WWW 5W - Downlight WP - 3000K - White View
XCDLWP5NWB 5W - Downlight WP - 4000K - Black View
XCDLWP5NWG 5W - Downlight WP - 4000K - Grey View
XCDLWP5NWW 5W - Downlight WP - 4000K - White View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet
XCDLWP5WWB 5W - Downlight WP - 3000K - Black 5 500 100 View
XCDLWP5WWG 5W - Downlight WP - 3000K - Grey 5 500 100 View
XCDLWP5WWW 5W - Downlight WP - 3000K - White 5 500 100 View
XCDLWP5NWB 5W - Downlight WP - 4000K - Black 5 500 100 View
XCDLWP5NWG 5W - Downlight WP - 4000K - Grey 5 500 100 View
XCDLWP5NWW 5W - Downlight WP - 4000K - White 5 500 100 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet
XCDLWP5WWB 5W - Downlight WP - 3000K - Black 45 66 90 View
XCDLWP5WWG 5W - Downlight WP - 3000K - Grey 45 66 90 View
XCDLWP5WWW 5W - Downlight WP - 3000K - White 45 66 90 View
XCDLWP5NWB 5W - Downlight WP - 4000K - Black 45 66 90 View
XCDLWP5NWG 5W - Downlight WP - 4000K - Grey 45 66 90 View
XCDLWP5NWW 5W - Downlight WP - 4000K - White 45 66 90 View

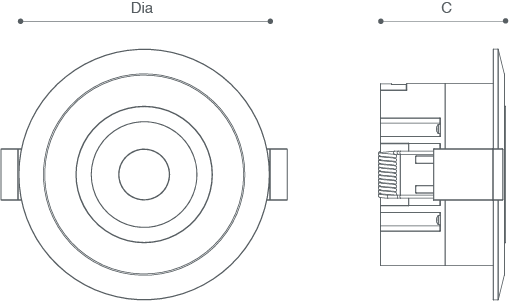

DOWNLIGHT WP Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCDLWP5WWB 5W - Downlight WP - 3000K - Black Energy Class C View Visit
XCDLWP5WWG 5W - Downlight WP - 3000K - Grey Energy Class C View Visit
XCDLWP5WWW 5W - Downlight WP - 3000K - White Energy Class C View Visit
XCDLWP5NWB 5W - Downlight WP - 4000K - Black Energy Class B View Visit
XCDLWP5NWG 5W - Downlight WP - 4000K - Grey Energy Class B View Visit
XCDLWP5NWW 5W - Downlight WP - 4000K - White Energy Class B View Visit

DOWNLIGHT WP Line Drawing
