FRD MINI - 6W

Recessed Fire Rated Downlight with CCT Selector - 6W

Where to Buy

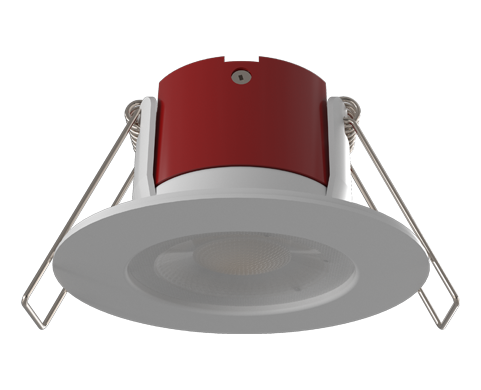

  • frd cc 6w

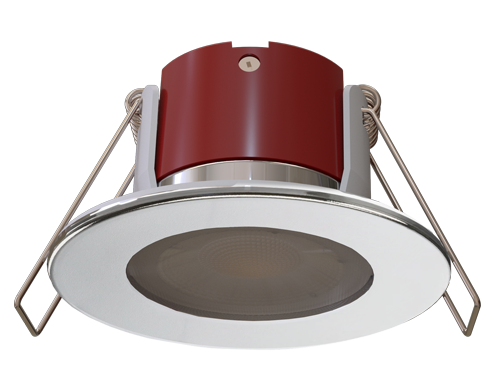

  • frd cc 6w chrome

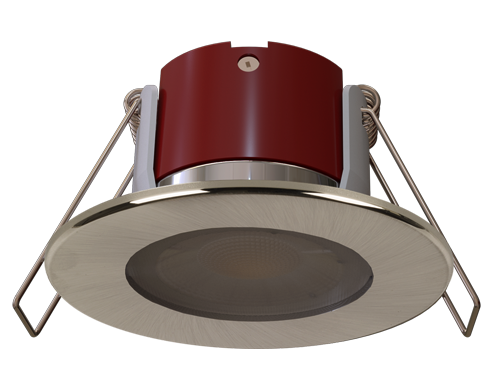

  • frd cc 6w sn

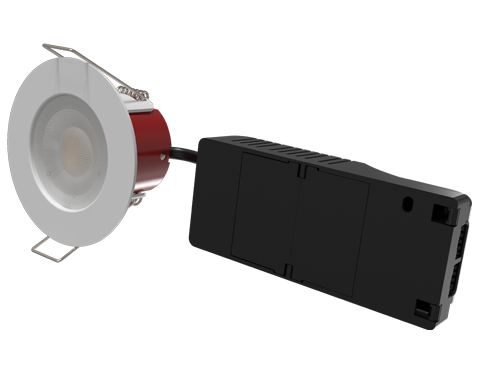

  • frd cc 6w fullkit
  • frd cc 6w
  • frd cc 6w chrome
  • frd cc 6w sn
  • frd cc 6w fullkit
Where to Buy
  • Ultra-low profile design perfect for installations in shallow ceiling voids, offering more flexibility in compact spaces.
  • CCT adjustable via selector switch [3000K/4000K/6000K]
  • Available in White, Satin Nickel and Polished Chrome Bezels
  • Dimmable as standard
  • 60° Beam Angle
  • 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]
  • 30, 60 & 90 minute fire rating with solid timber joists
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • Plaster-in reccessed FRD TRIMLESS FRAME [sold separately]
  • Loop in/out mains connections with easy-fit connector
  • CRI: Ra>80
  • Thermally-insulating material coverable
Tri-Colour [3000K, 4000K, 6000K]3 Years WarrantyIP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD MINI - 6W Product Flyer Icon

Product Flyer
FRD MINI - 6W Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet
XCFRA6CTW10 FRD CC Recessed Downlight 6W - 3000K-6000K - White -10 pack View
XCFRA6CTW FRD CC Recessed Downlight 6W - 3000K-6000K - White View
XCFRA6CTSN FRD CC Recessed Downlight 6W - 3000K-6000K - Satin Nickel View
XCFRA6CTPC FRD CC Recessed Downlight 6W - 3000K-6000K - Polished Chrome View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet
XCFRA6CTW10 FRD CC Recessed Downlight 6W - 3000K-6000K - White -10 pack 6 650 108 View
XCFRA6CTW FRD CC Recessed Downlight 6W - 3000K-6000K - White 6 650 108 View
XCFRA6CTSN FRD CC Recessed Downlight 6W - 3000K-6000K - Satin Nickel 6 650 108 View
XCFRA6CTPC FRD CC Recessed Downlight 6W - 3000K-6000K - Polished Chrome 6 650 108 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet
XCFRA6CTW10 FRD CC Recessed Downlight 6W - 3000K-6000K - White -10 pack 44 60 80 View
XCFRA6CTW FRD CC Recessed Downlight 6W - 3000K-6000K - White 44 60 80 View
XCFRA6CTSN FRD CC Recessed Downlight 6W - 3000K-6000K - Satin Nickel 44 60 80 View
XCFRA6CTPC FRD CC Recessed Downlight 6W - 3000K-6000K - Polished Chrome 44 60 80 View
FRD MINI - 6W Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRA6CTW10 FRD CC Recessed Downlight 6W - 3000K-6000K - White -10 pack Energy Class C View Visit
XCFRA6CTW FRD CC Recessed Downlight 6W - 3000K-6000K - White Energy Class C View Visit
XCFRA6CTSN FRD CC Recessed Downlight 6W - 3000K-6000K - Satin Nickel Energy Class C View Visit
XCFRA6CTPC FRD CC Recessed Downlight 6W - 3000K-6000K - Polished Chrome Energy Class C View Visit

FRD MINI - 6W Line Drawing

Accessories

FRD TRIMLESS FRAME
