FRD CC

(This product is now obsolete)

Recessed Fire Rated Downlight with CCTK Selector

Where to Buy

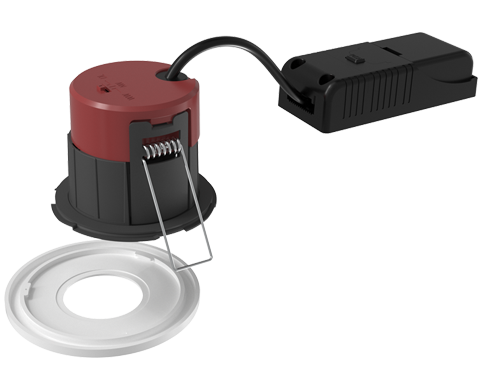

  • xcite frd cc

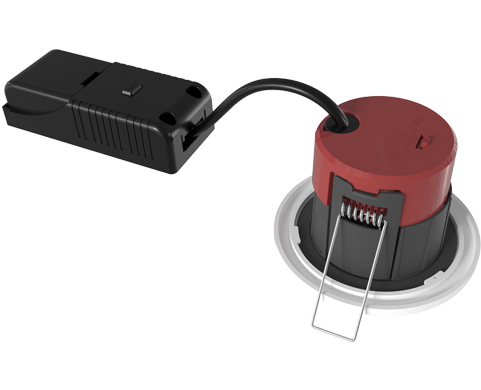

  • xcite frd cc switch

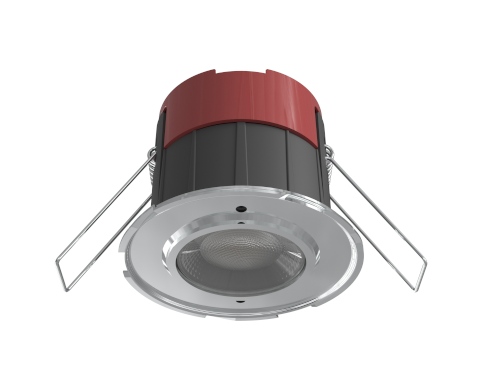

  • xcite frd cc bezeless

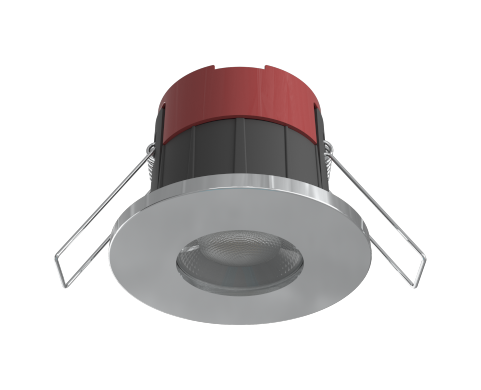

  • xcite frd cc chrome

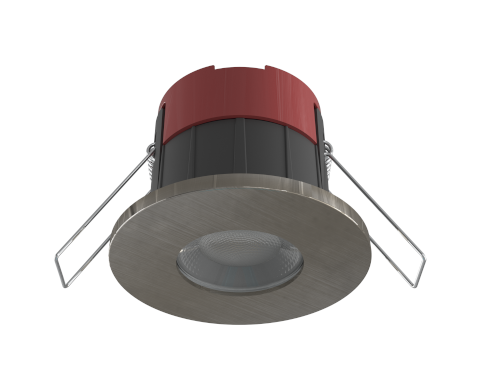

  • xcite frd cc satin nickel

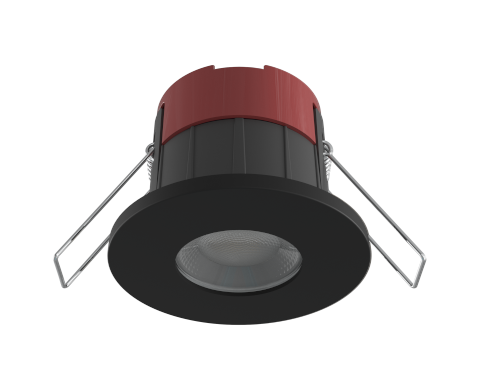

  • xcite frd cc black

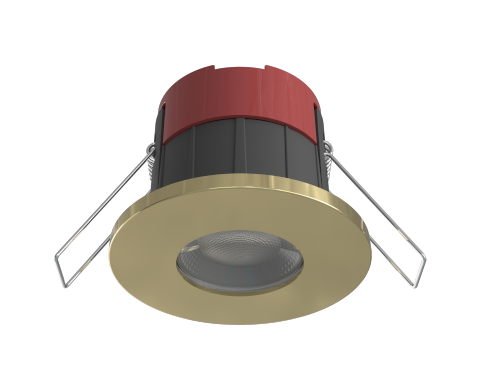

  • xcite frd cc brass

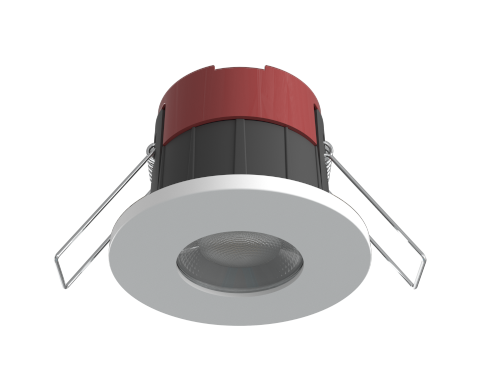

  • xcite frd cc white
  • xcite frd cc
  • xcite frd cc switch
  • xcite frd cc bezeless
  • xcite frd cc chrome
  • xcite frd cc satin nickel
  • xcite frd cc black
  • xcite frd cc brass
  • xcite frd cc white
Where to Buy
  • Ideal for retrofit of existing halogen downlight fixtures
  • Suitable for domestic applications
  • CCT adjustable via selector switch [3000K/4000K/6000K]
  • Available in 5 different coloured bezels and 2 sizes [not included]
  • Dimmable as standard
  • Loop in/out mains connections with easy-fit connector
  • Convert to larger sized cut outs with the Conversion Plates
  • 30 minute fire rating with Staircraft I-Joist [Compatibility Matrix]
  • 30, 60 & 90 minute fire rating with solid timber joists
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • Up to 100 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] 7 600 to 700 100 View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] 60 62 75 View View

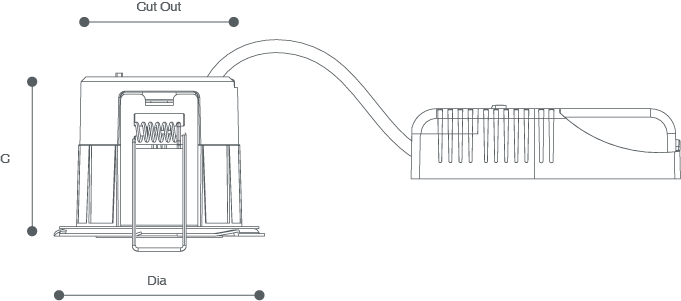

FRD CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRA7CT 7W - Fire Rated Recessed Downlight - IP65 - [3000K/4000K/6000K] Energy Class B View Visit

FRD CC Line Drawing

Accessories

FIRE TENT
