GEAR TRAY

Circular Bulkhead Retro Fit Gear Tray

Where to Buy

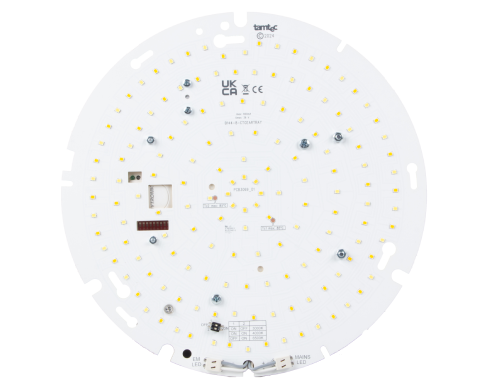

  • xcite gear tray 561

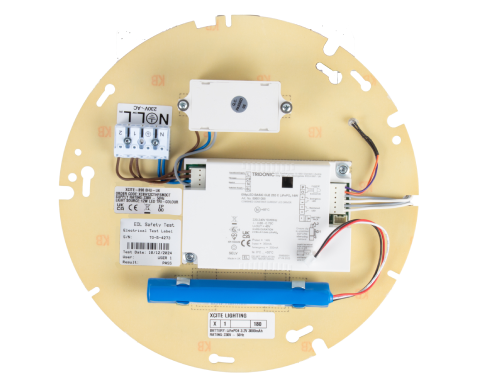

  • xcite gear tray 559
  • xcite gear tray 561
  • xcite gear tray 559
Where to Buy
  • CCT adjustable via selector switch [3000K/4000K/6500K]
  • Microwave movement sensor available
  • Emergency option available
  • Universal fitting suitable for various circular enclosures
  • Up to 157 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6500K]3 Years WarrantyMaintained emergency 3hr (Option)Microwave Sensor
GEAR TRAY Product Flyer Icon

Product Flyer
GEAR TRAY Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet
XCBH12CTGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - 3000K-6500K View
XCBH12CTHFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Microwave sensor - 3000K-6500K View
XCBH12CTM3GT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - 3000K-6500K View
XCBH12CTM3HFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - Microwave sensor - 3000K-6500K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet
XCBH12CTGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - 3000K-6500K 13.4 2100 157 View
XCBH12CTHFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Microwave sensor - 3000K-6500K 14.2 2100 148 View
XCBH12CTM3GT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - 3000K-6500K 14.2 2100 148 View
XCBH12CTM3HFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - Microwave sensor - 3000K-6500K 14.2 2100 148 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet
XCBH12CTGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - 3000K-6500K 30 265 View
XCBH12CTHFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Microwave sensor - 3000K-6500K 35 265 View
XCBH12CTM3GT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - 3000K-6500K 40 265 View
XCBH12CTM3HFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - Microwave sensor - 3000K-6500K 40 265 View

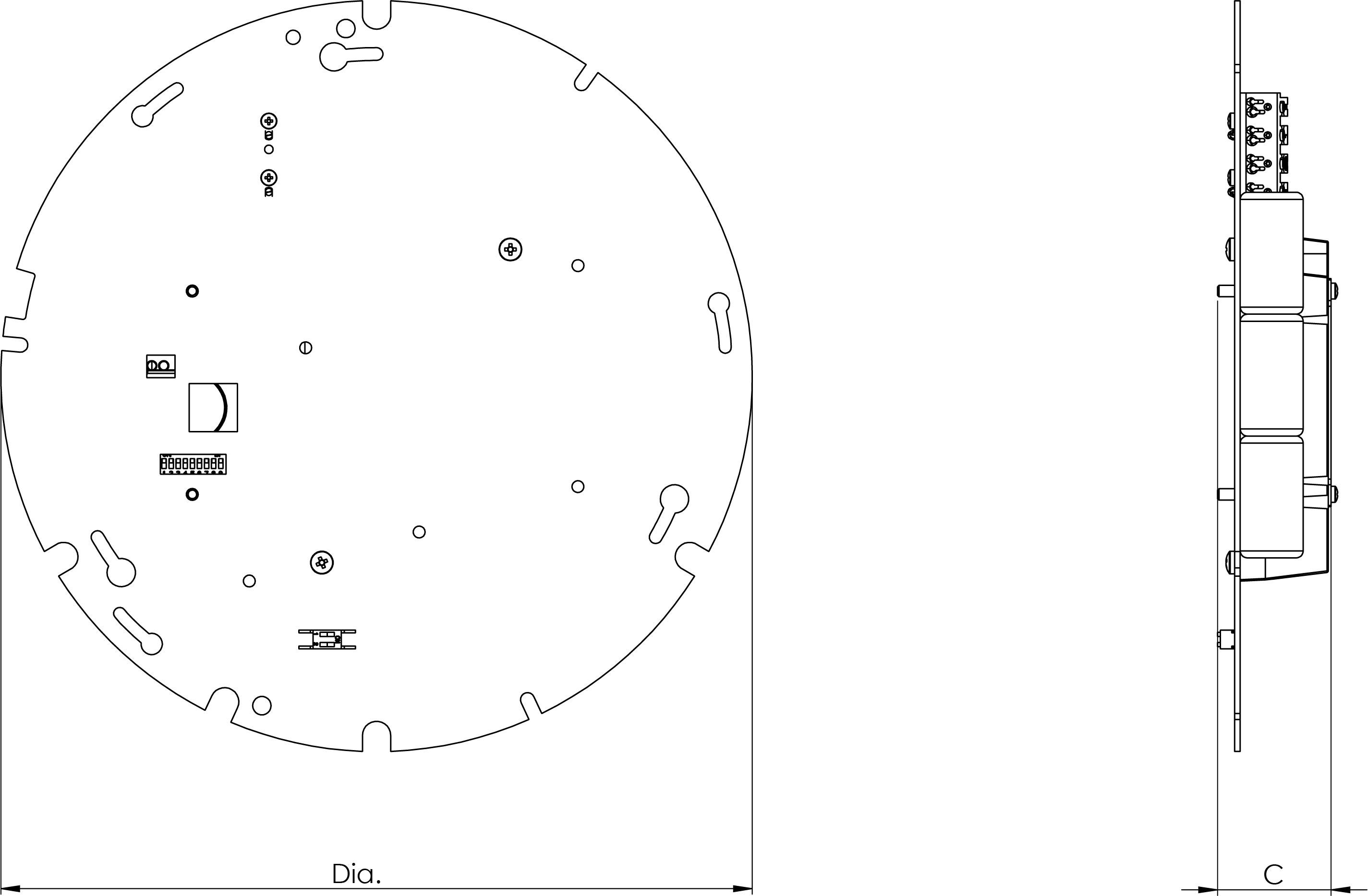

GEAR TRAY Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBH12CTGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - 3000K-6500K Energy Class B Visit
XCBH12CTHFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Microwave sensor - 3000K-6500K Energy Class B Visit
XCBH12CTM3GT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - 3000K-6500K Energy Class B Visit
XCBH12CTM3HFSGT XCITE RETRO FIT GEAR TRAY XCBH 14W - Fixed output - Emergency - Microwave sensor - 3000K-6500K Energy Class B Visit

GEAR TRAY Line Drawing
