HIGH BAY

LED High Bay

Where to Buy

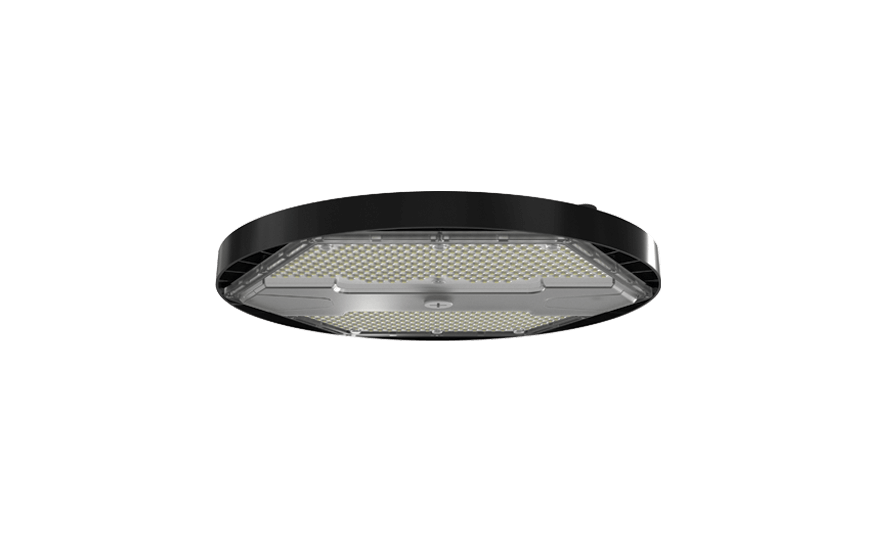

  • hi bay main

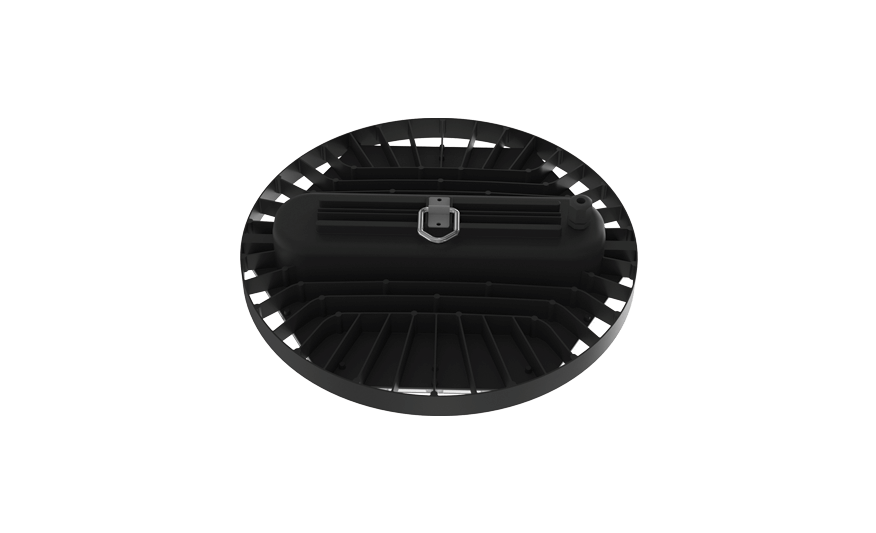

  • hi bay top

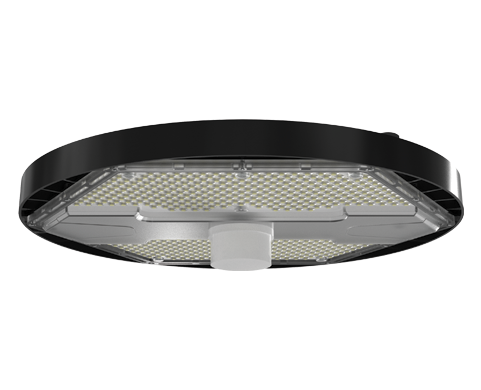

  • hi bay sensor
  • hi bay main
  • hi bay top
  • hi bay sensor
Where to Buy
  • Ideal for retro-fit of SON or Metal Halide high bays
  • Available in 2 sizes and 3 outputs
  • Suspension via chain or wire suspension
  • Extra-long 1.5m pre-wired cable
  • Suitable for mounting heights between 5m and 12m
  • Microwave dimming sensor option available
  • Up to 133 lumens per Watt efficacy
  • Die-cast aluminium body finished in black
  • Integral driver
  • Supplied as standard with neutral white [4000K] LED
  • Hand held programmer available
4000K - NW3 Years WarrantyIP65IK08Microwave sensor
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner
XCHBA100NW 100W - High Bay - 4000K View View
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K View
XCHBA150NW 150W - High Bay - 4000K View View
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K View
XCHBA200NW 200W - High Bay - 4000K View View
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner
XCHBA100NW 100W - High Bay - 4000K 100 13000 130 View View
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K 100 13000 130 View
XCHBA150NW 150W - High Bay - 4000K 150 20000 133 View View
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K 150 20000 133 View
XCHBA200NW 200W - High Bay - 4000K 200 26000 130 View View
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K 200 26000 130 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner
XCHBA100NW 100W - High Bay - 4000K 112 301 View View
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K 140 301 View
XCHBA150NW 150W - High Bay - 4000K 112 361 View View
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K 140 361 View
XCHBA200NW 200W - High Bay - 4000K 112 361 View View
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K 140 361 View

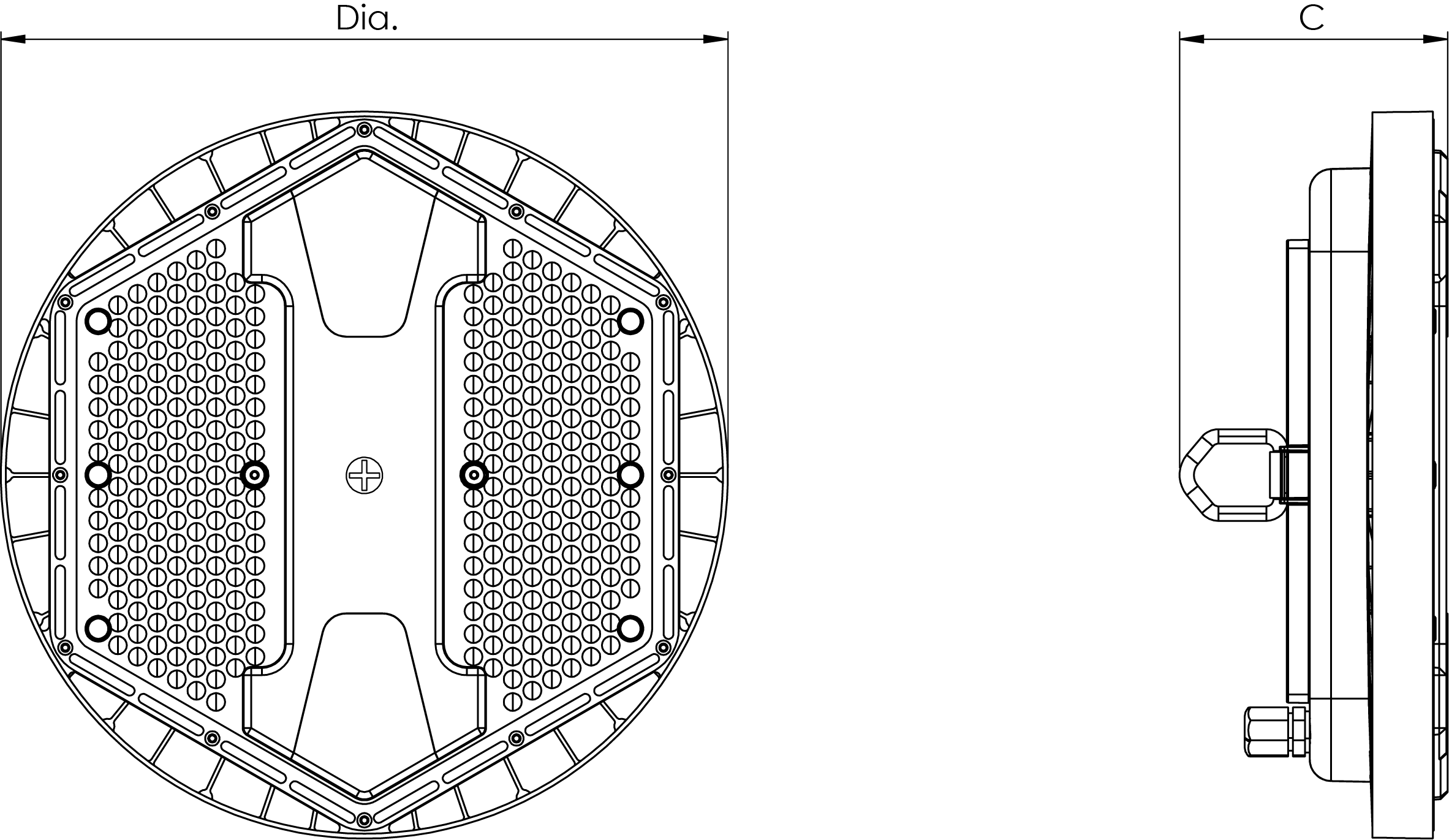

HIGH BAY Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCHBA100NW 100W - High Bay - 4000K Energy Class C View Visit
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K Energy Class C View Visit
XCHBA150NW 150W - High Bay - 4000K Energy Class C View Visit
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K Energy Class C View Visit
XCHBA200NW 200W - High Bay - 4000K Energy Class C View Visit
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K Energy Class C View Visit

HIGH BAY Line Drawing

Accessories

HIGH BAY REMOTE
