X1 PANEL

Versatile 600 x 600 LED panel with selectable wattage and CCT, delivering up to 141 lm/W. Designed for commercial spaces requiring flexible, energy efficient low glare UGR<19 lighting

Where to Buy

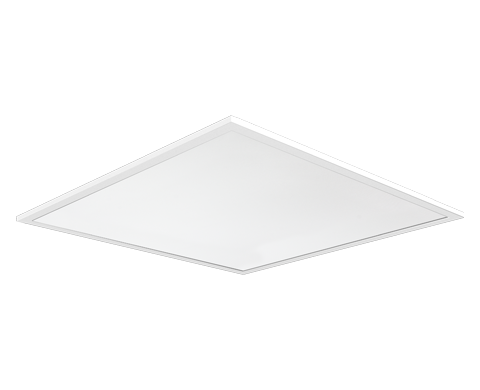

  • xcite x1 panel main

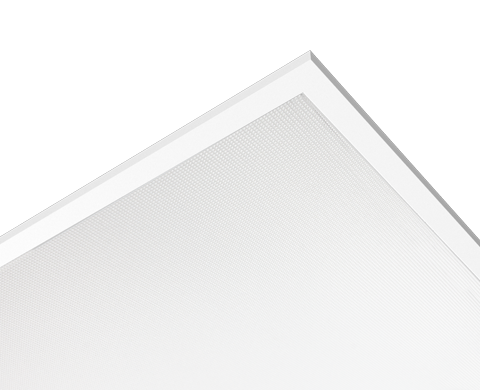

  • xcite x1 panel diffuser

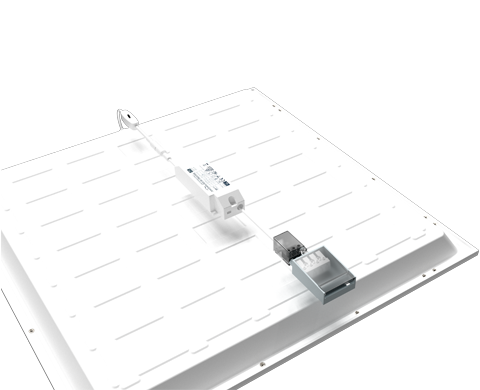

  • xcite x1 panel terminal block grey full

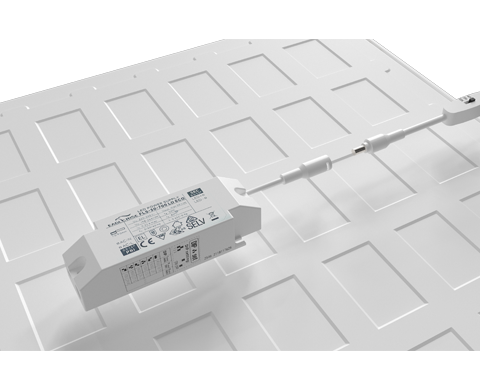

  • xcite x1 panel driver

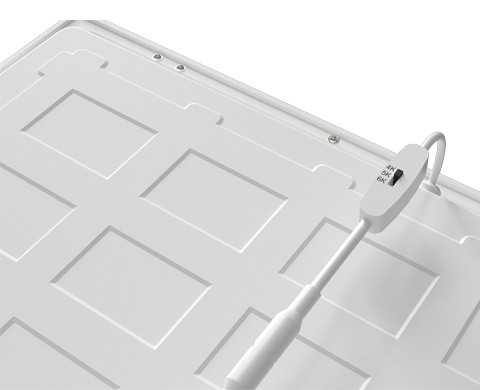

  • xcite x1 panel cct

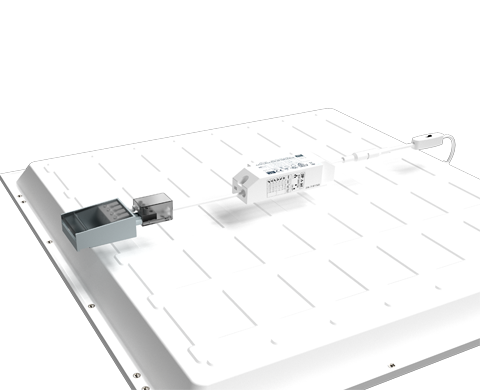

  • xcite x1 panel terminal block grey
  • xcite x1 panel main pir
  • xcite x1 panel pir closeup
  • xcite x1 panel main
  • xcite x1 panel diffuser
  • xcite x1 panel terminal block grey full
  • xcite x1 panel driver
  • xcite x1 panel cct
  • xcite x1 panel terminal block grey
  • xcite x1 panel main pir
  • xcite x1 panel pir closeup
Where to Buy
  • Low glare UGR<19 TP[a] diffuser
    Improves visual comfort and helps create a more productive working environment
  • 4000K, 5000K and 6000K selectable
    Provides flexibility to tailor the lighting environment to different spaces and user preferences
  • 17W to 27W wattage selectable
    Allows lumen output to be adjusted from 2300 lm to 3500 lm to suit application requirements
  • 141 lm/W efficacy
    Delivers high performance illumination while helping to reduce energy consumption and running costs
  • DALI addressable option
    Provides individual luminaire control, dimming and scene setting for enhanced lighting flexibility and energy management
  • Sensor option available
    Supports additional energy savings through occupancy and daylight responsive lighting control
  • Emergency option available
    Maintains illumination during mains power failure to support safe evacuation of the building
50,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Dimmable DALI gearDimmableWattage SwitchableColour Switchable
X1 PANEL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output View
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 B
(mm)		 Data sheet
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable 595 595 35 View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output 595 595 35 View
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC 595 595 35 View
X1 PANEL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable Energy Class C Visit
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output Energy Class C Visit
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC

X1 PANEL Line Drawing
