X1 SURFACE LINEAR

Versatile surface mounted linear luminaire with selectable wattage and CCT options, available in 4ft and 5ft lengths. Designed for commercial spaces requiring flexible, energy efficient lighting

Where to Buy

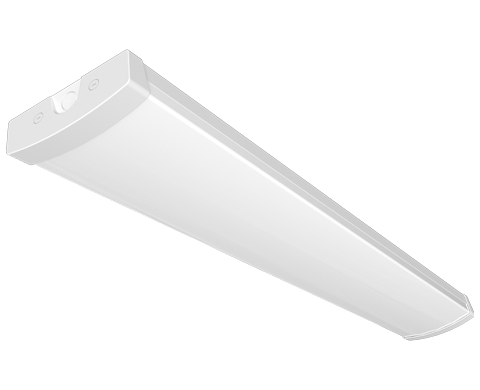

  • xcite x1 surface linear main

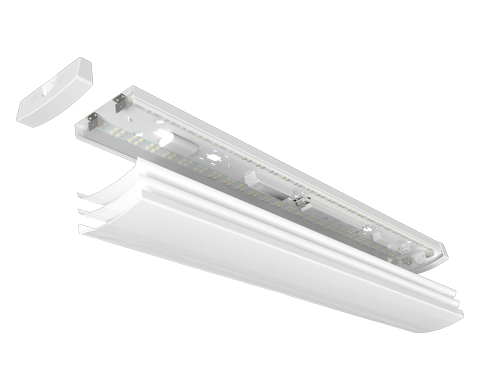

  • xcite x1 surface linear split

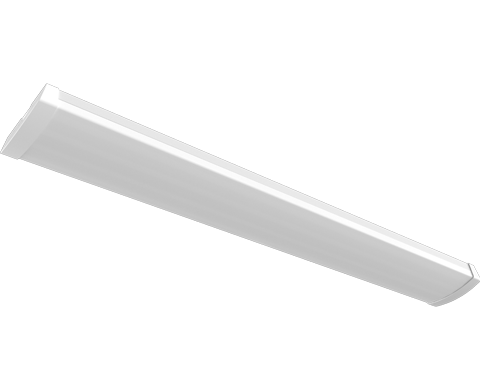

  • xcite x1 surface linear full panel

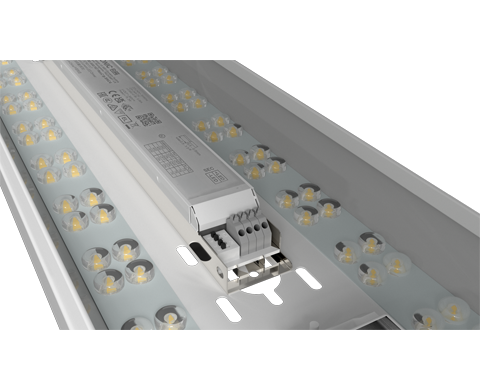

  • xcite x1 surface linear switches

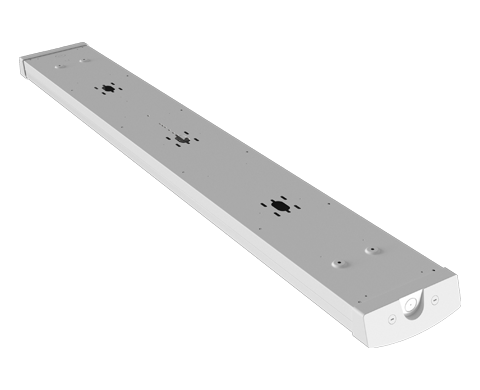

  • xcite x1 surface linear underside
  • xcite x1 surface linear main
  • xcite x1 surface linear split
  • xcite x1 surface linear full panel
  • xcite x1 surface linear switches
  • xcite x1 surface linear underside
Where to Buy
  • Low glare TP[a] diffuser
    Improves visual comfort and helps create a more productive working environment
  • 3000K, 4000K and 5000K selectable
    Enables the lighting colour to be tailored to suit different environments and user preferences
  • 23W to 47W wattage options
    Allows lumen output to be adjusted from 2600 lm to 5600 lm to suit application requirements
  • 120 lm/W efficacy
    Delivers high performance illumination while helping to reduce energy consumption and running costs
  • Rear and end cable entry points
    Allows flexible installation options to simplify wiring and reduce installation time
  • Microwave sensor option available
    Supports additional energy savings through automatic occupancy based lighting control
  • Emergency option available
    Maintains illumination during mains power failure to support safe evacuation of the building
Tri-Colour [3000K, 4000K, 5000K]50,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 SURFACE LINEAR Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet
XCSL4X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL4X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL4X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL4X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL5X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL5X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL5X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White View
XCSL5X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet
XCSL4X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White 23, 29, 35, 40 2600/3300/3900/4500 113 View
XCSL4X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 23, 29, 35, 40 2600/3300/3900/4500 113 View
XCSL4X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 23, 29, 35, 40 2600/3300/3900/4500 113 View
XCSL4X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White 23, 29, 35, 40 2600/3300/3900/4500 113 View
XCSL5X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White 28, 34, 41, 47 3300/4100/4900/5600 118 View
XCSL5X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 28, 34, 41, 47 3300/4100/4900/5600 118 View
XCSL5X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White 28, 34, 41, 47 3300/4100/4900/5600 118 View
XCSL5X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 28, 34, 41, 47 3300/4100/4900/5600 118 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 B
(mm)		 Data sheet
XCSL4X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White 1225 155 55 View
XCSL4X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 1225 155 55 View
XCSL4X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 1225 155 55 View
XCSL4X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White 1225 155 55 View
XCSL5X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White 1525 155 55 View
XCSL5X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 1525 155 55 View
XCSL5X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White 1525 155 55 View
XCSL5X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White 1525 155 55 View
X1 SURFACE LINEAR Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCSL4X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL4X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL4X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL4X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL5X1 Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL5X1MS Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL5X1M3 Opal diffuser - 3000K-5000K + Wattage Switchable - White
XCSL5X1M3MS Opal diffuser - 3000K-5000K + Wattage Switchable - White

X1 SURFACE LINEAR Line Drawing
