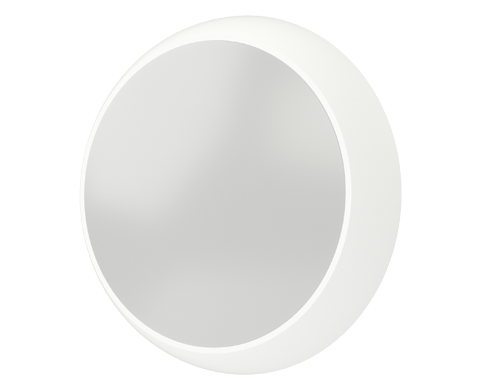

X1 BULKHEAD
A versatile LED bulkhead suitable for wall or ceiling mounting, with selectable colour [CCT] and wattage. Designed for consistent performance across internal and external applications, combining durable construction with dependable everyday lighting.
- Suitable for most domestic and commercial applications
- CCT adjustable via selector switch [3000K/4000K/6000K]
- Manufactured from durable thermoplastic materials
- Wattage adjustable via selector switch [8W/12W/16W]

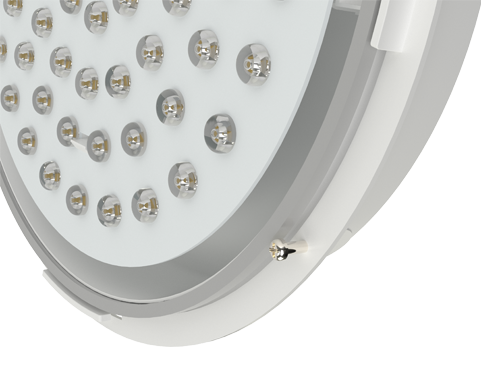

- Twist On/Off diffuser with screwlock suitable for public spaces

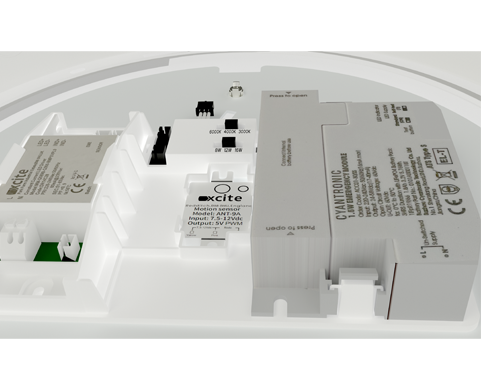

- Modular emergency and microwave sensor's available for quick and easy conversion of a standard fitting
- For additional control, please use X1 Bulkhead Remote [Sold Separately]

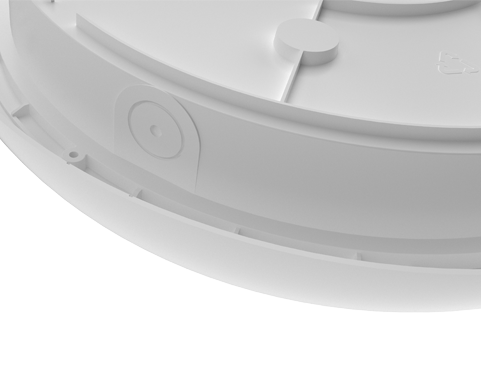

- Conduit side entry points for surface mount cable entry
- Pre-assembled emergency and sensor luminaires available

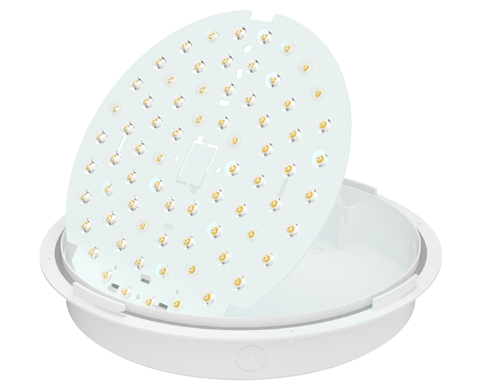

- Hinged gear tray for quick and easy installation
- Loop in/out push-fit terminal block for quick installation
- Loop in/out push-fit terminal block for quick installation
![Tri-Colour [3000K, 4000K, 6000K]](/assets/images/icons_xcite/tri346.png "Tri-Colour [3000K, 4000K, 6000K]"){kind=icon}
No
No
| Order Code | Description | Data sheet | Light Planner |
|---|---|---|---|
| XCBHX1MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor | View | |
| XCBHX1M3 | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency | View | |
| XCBHX1 | CCT [3000K/4000K/6000K] + Wattage Selectable | View | View |
| XCBHX1M3MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor | View |
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Light Planner |
|---|---|---|---|---|---|---|
| XCBHX1MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor | 8W/12W/16W | 1000 to 1900 | 130 | View | |
| XCBHX1M3 | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency | 8W/12W/16W | 1000 to 1900 | 130 | View | |
| XCBHX1 | CCT [3000K/4000K/6000K] + Wattage Selectable | 8W/12W/16W | 1000 to 1900 | 130 | View | View |
| XCBHX1M3MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor | 8W/12W/16W | 1000 to 1900 | 130 | View |
No
No

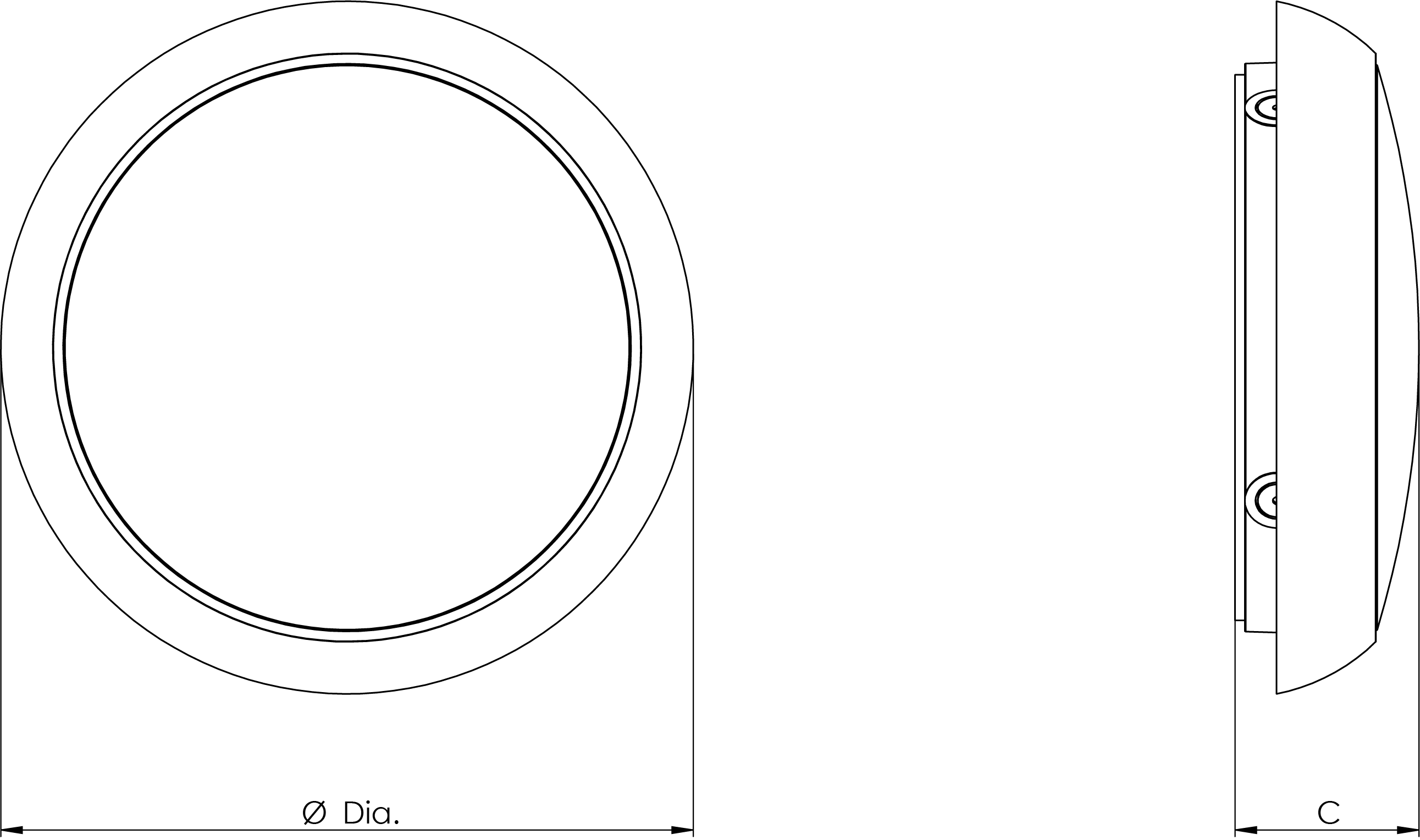

| Order Code | Description | C (mm) |
Dia. (mm) |
Data sheet | Light Planner |
|---|---|---|---|---|---|
| XCBHX1MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor | 85 | 320 | View | |
| XCBHX1M3 | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency | 85 | 320 | View | |
| XCBHX1 | CCT [3000K/4000K/6000K] + Wattage Selectable | 85 | 320 | View | View |
| XCBHX1M3MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor | 85 | 320 | View |
No
No
| Order Code | Description | Energy Class | ERP Instructions |
EPREL Site |
|---|---|---|---|---|
| XCBHX1MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor |
|
View | Visit |
| XCBHX1M3 | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency |
|
View | Visit |
| XCBHX1 | CCT [3000K/4000K/6000K] + Wattage Selectable |
|
View | Visit |
| XCBHX1M3MS | CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor |
|
View | Visit |
