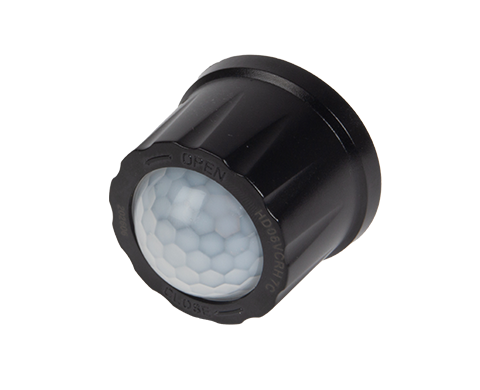

X1 HIGH BAY PIR MODULE
Automatically control lighting based on occupancy and daylight thresholds.
- Pir Sensor
Provides sensor-based control for energy efficiency - Remote Sensor Programming [XCHBAREM sold separately]
Quick configuration of X1 High Bay sensor settings from floor level, with an operating range of up to 15m - Simple, Plug & Play Installation
Zhaga base connection - Scene Setting
Detection area, hold time, standby dim level, standby period - Detection Area
2-4m radius, 12m maximum installation height, detection angle of <120° - Detection Sensitivity
Adjusts the detection sensitivity according to the installation height, or by the selectable values 25%,50%,75% or 100% - Corridor Function
After the hold time expires, the sensor dims the brightness to the standby level and time required - Brightness Adjustable
From 10% up to 100%, in 5% increments - Daylight Harvesting
When the ambient light level adjusts outside preset lux values, the luminaire will dim up or down to maintain the set light level.
Dual-PD distinguishes between natural daylight and artificial LED light
